DIP Jumpers – Series 100 thru 111

Available in RoHS
dip jumpers

FEATURES

  • Wide Array of DIP Jumper Configurations and Wiring Possibilities
  • Reliable, Electronically-tested Solder Connections
  • Protective Covers Ultrasonically-welded with Strain Relief
  • Easy Identification and Tracing with 10-color Cable

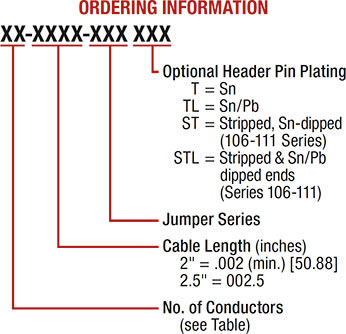

Ordering information
Clear
  • HEADER BODY AND COVER: black UL 94V-0 4/6 Nylon
  • HEADER PINS: Brass 1/2-hard
  • STANDARD PIN PLATING: 10μ [0.25μ] min. Au per MIL-G-45204 over 50μ [1.27μ] min. Ni per QQ-N-290
  • OPTIONAL PLATING: 200μ [5.08μ] min. matte Sn per ASTM B545-97(2004)e1 over 50μ [1.27mm] min. Ni per QQ-N-290; –OR– 200μ [5.08μ] 90/10 Sn/Pb per MIL-T-10727 Type I over 50μ [1.27μ] min. Ni per QQ-N-290
  • CABLE INSULATION: UL style 2697 Polyvinyl Chloride (PVC)
  • CABLE LAMINATE: clear PVC, self-extinguishing*
  • 0.050 [1.27] PITCH CONDUCTORS: 28-AWG, 7/36-strand, tinned Cu per ASTM B 33
  • 0.039 [0.99] PITCH CONDUCTORS: 26-AWG, 7/34-strand)
  • CABLE CURRENT RATING: 1 amp at 10°C [50°F] above ambient
  • CABLE VOLTAGE RATING: 300V
  • CABLE TEMPERATURE RATING: 176°F [80°C]
  • CABLE CAPACITANCE: 13.0pF/ft. [42.7pF/meter] nominal at 1MHz*
  • CROSSTALK: 10-ft sample, 5ns rise time with 2 lines driven; near end 4.7%; far end 4.3% nominal*
  • PROPAGATION DELAY: 1.5ns/ft. [4.9ns/meter] nominal*
  • INSULATION RESISTANCE: 1010Ω (10 ft. [3 meters] min.)

* Applies to 0.050 [1.27] Pitch Cable Only

  • SUGGESTED PCB HOLE SIZE: 0.033 ±0.002 [0.86 ±0.05] dia.

ALL DIMENSIONS IN INCHES [MILLIMETERS]

CONSULT FACTORY FOR OTHER SIZES & CONFIGURATIONS

ALL TOLERANCES ±0.005 [±0.13] UNLESS OTHERWISE SPECIFIED

PRINTOUTS OF THIS DOCUMENT MAY BE OUT-OF-DATE AND SHOULD BE CONSIDERED UNCONTROLLED

CUSTOMIZATION: ARIES SPECIALIZES IN CUSTOM DESIGN AND PRODUCTION. SPECIAL MATERIALS, PLATINGS, SIZES, AND CONFIGURATIONS CAN BE FURNISHED, DEPENDING ON QUANTITY.

ARIES RESERVES THE RIGHT TO CHANGE PRODUCT GENERAL SPECIFICATIONS WITHOUT NOTICE

PRINTOUTS OF THIS DOCUMENT MAY BE OUT-OF-DATE AND SHOULD BE CONSIDERED UNCONTROLLED

11006-order-info-3

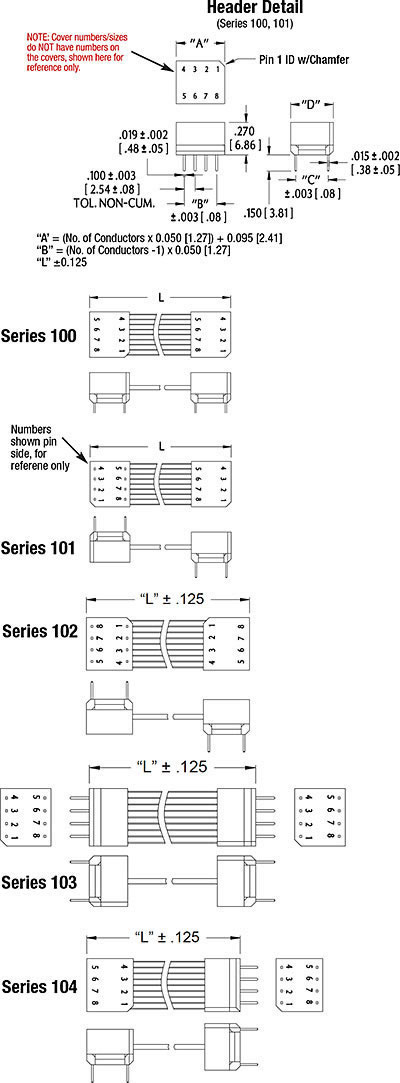

Available Sizes
Centers “C”
Dim. “D”
4 thru 20
0.300 [7.62]
0.395 [10.03]
22
0.400 [10.16]
0.495 [12.57]
24, 28, 40
0.600 [15.24]
0.695 [17.65]

11006-new-drawing-1-3

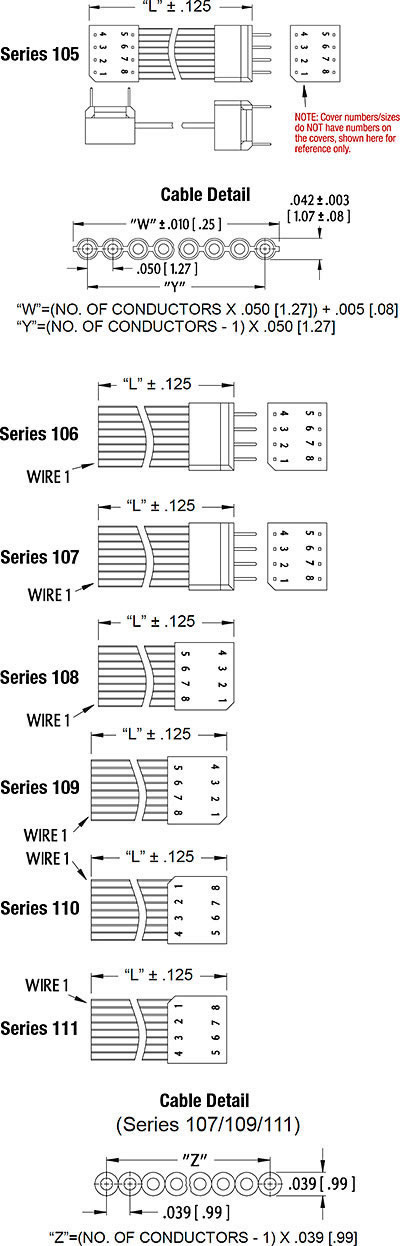

SINGLE-END DIP JUMPER WIRE LIST
Series 106, 108, 110
Series 107, 109, 111
Wire
Number
Header Pin
Number
Wire
Number
Header Pin
Number
1
1
1
1
2
8
2
2
3
2
3
3
4
7
4
4
5
3
5
5
6
6
6
6
7
4
7
7
8
5
8
8

11006-new-drawing-2-3
