Male/Female DIP Jumpers – Series 200 thru 216

male female dip jumpers

FEATURES

  • Aries offers a wide array of DIP jumper configurations for all your programming
    needs
  • Reliable, electronically-tested solder connections
  • Protective covers are ultrasonically welded on and provide strain relief
    for cables
  • 10-color cable allows for easy identification and tracing
  • For jumper lengths under 2.000 [50.80]

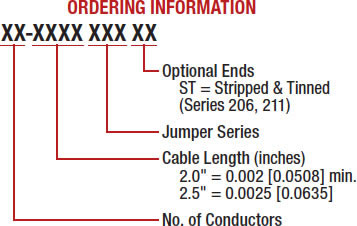

Ordering Information

Consult Factory

See Data Sheet 11012 for other configurations and additional information.

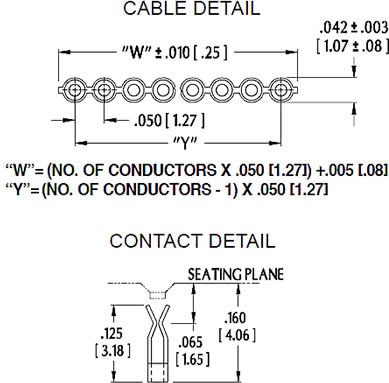

  • BODY MATERIAL: black UL 94V-0 glass-filled 4/6 Nylon
  • SOLDER TAIL PINS: Brass, 1/2-hard
  • SOCKET CONTACTS: Grade A, spring-tempered Phosphor Bronze per QQ-B-750
  • PIN AND CONTACT PLATING: 10µ [0.25µ] min. Au per MIL-G-45204
    over 50µ [1.27µ] min. Ni per SAE AMS-QQ-N-290B
  • CABLE INSULATION: UL Style 2697 Polyvinyl Chloride (PVC)
  • LAMINATE: clear PVC, self-extinguishing
  • CONDUCTORS: 28-AWG, 7/36-strand, tinned Cu per ASTM B 33
  • CABLE CURRENT RATING: 1 amp at 10°C [50°F] above ambient
  • CABLE VOLTAGE RATING: 300V
  • CABLE TEMPERATURE RATING: 176°F [80°C]
  • CABLE CAPACITANCE: 13.0pF/ft. [42.7pF/meter] nominal at 1MHz
  • CROSSTALK: 10’ sample, 5ns Rise Time with 2 lines driven; Near end
    4.7%; Far end 4.3% nominal
  • PROPAGATION DELAY: 1.5ns/ft. [4.9ns/meter] nominal
  • INSULATION RESISTANCE: 1010Ω (10 ft. [3 meters] min.)
Download Data Sheet 11013
