Open Frame Capacitor Collet DIP Socket with Solder Pin Tails – Series 518

open frame capacitor collet dip socket

FEATURES

  • Capacitor bypasses unwanted electromagnetic noise
  • Available with either 0.1µF or 0.33µF capacitor, 50V, Z5U temperature coefficient
  • Open frame allows for more efficient utilization of board space and better cooling
  • Compatible with automatic insertion equipment
  • Side-to-side and end-to-end stackable

Ordering information
Clear

See Data Sheet 12027 for Open-Frame Capacitor Collet Socket with Wire Wrap Pins

  • BODY MATERIAL: blue UL 94V-0 glass-filled Polyester Thermoplastic (PBT)
  • PIN BODY: Brass 360 1/2-hard per UNS C36000 ASTMB16-85
  • PIN BODY PLATING: either 10μ [0.25μ] min. Au per MIL-G-45204 or 200μ [5.08μ] min. 93/7 Sn/Pb per ASTM B545 or 200μ [5.08μ] min. Sn per ASTM B545 Type 1 over 100μ [2.54μ] min. Ni per SAE AMS-QQ-N-290
  • CONTACT PLATING: either 10µ [0.25µ] min. Au per MIL-G-45204 or 150µ [3.81µ] min. 93/7 Sn/Pb per MIL-P-81728 over 50µ [1.27µ] min. Ni per QQ-N-290. Heavy 30µ [0.76µ] Au plating also available
  • CONTACT CURRENT RATING: 3 amps
  • OPERATING TEMPERATURE: 221°F [105°C] for Sn plating, and 257°F [125°C] for Au plating
  • INSERTION FORCE: 180g/pin
  • WITHDRAWAL FORCE: 90g/pin
  • NORMAL FORCE: 140g/pin; based on a 0.018 [0.46] dia. test lead
  • ACCEPTS LEADS: 0.015-0.025 [0.38-0.64] in dia.
  • ACCEPTS LEAD LENGTHS: from 0.100 [2.54] min.
  • SUGGESTED PCB HOLE SIZE: 0.030 ±0.002 [0.76±0.05] dia.

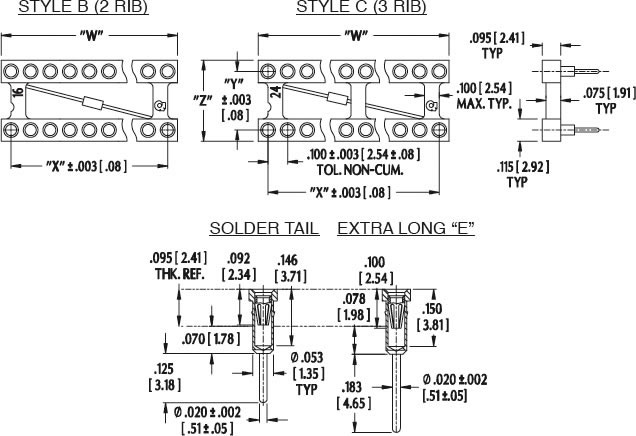

ALL DIMENSIONS: INCHES [MILLIMETERS]

ALL TOLERANCES ±0.030 ±0.002 [0.76 ±0.05] dia.

“W” = (No. of Pins per Row) x 0.100 [2.54]
“X” = (No. of Pins per Row -1) x 0.100 [2.54]

CONSULT FACTORY FOR OTHER SIZES & CONFIGURATIONS

PRINTOUTS OF THIS DOCUMENT MAY BE OUT-OF-DATE AND SHOULD BE CONSIDERED UNCONTROLLED

CUSTOMIZATION: In addition to the standard products shown on this page, Aries specializes in custom design and production. Special materials, platings, sizes, and configurations can be furnished, depending on quantity. NOTE: Aries reserves the right to change product specifications without notice.

Frame Style
# Ribs
Centers “Y”
Dim. “Z”
Available Sizes
B
2
0.300 [7.62]
0.400 [10.16]
14, 16, 18, 20
0.400 [10.16]
0.500 [12.70]
20, 22, 24
C
3
0.300 [7.62]
0.400 [10.16]
24, 28
0.600 [15.24]
0.700 [17.78]
24, 28, 32, 40
Download Data Sheet 12026
