Header Covers – Series 650

Available in RoHS
header cover

FEATURES

  • Aries offers a complete line of DIP Headers and Covers useful for mounting components such as resistors, diodes, etc.
  • For mating DIP header information, consult Data Sheet 12032

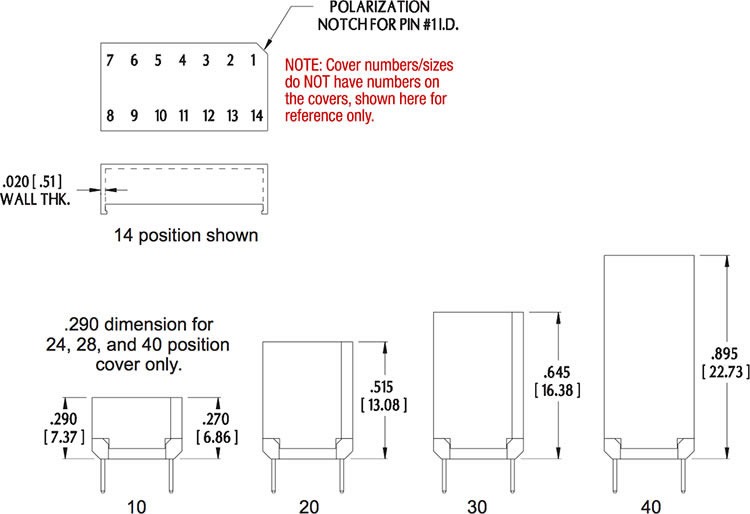

  • Four cover heights provide mounting of 1/8″ [3.18] high to 3/4″ [19.05] high components
  • Pin positions are numbered on cover. Polarization notch identifies Pin 1
  • Specifically designed to snap onto Aries Series 600 Headers and Series 675 DIP Program Headers

Ordering information
Clear

Consult Data Sheet 12032 for DIP Header and Data Sheet 16004 for Programmable Header information.

  • STANDARD COVER: black UL 94V-0 4/6 Nylon
  • SUGGESTED PCB HOLE SIZE: 0.035 ±0.002 [0.89 ± 0.05] dia.

 ALL DIMENSIONS IN INCHES [MILLIMETERS]

CONSULT FACTORY FOR OTHER SIZES & CONFIGURATIONS

ALL TOLERANCES ±0.005 [±0.13] UNLESS OTHERWISE SPECIFIED

PRINTOUTS OF THIS DOCUMENT MAY BE OUT-OF-DATE AND SHOULD BE CONSIDERED UNCONTROLLED

CUSTOMIZATION: In addition to the standard products shown on this page, Aries specializes in custom design and production. Special materials, platings, sizes, and configurations can be furnished, depending on quantity. NOTE: Aries reserves the right to change product specifications without notice.

Download Data Sheet 12033
