DIP Header with Screw Machine Contacts – Series 625

Name: DIP Header with Screw Machine Contacts – Series 625
SKU: 12035
Availability: instock

Available in RoHS

FEATURES

Aries offers a full line of DIP Headers, available with either screw machine or coined contacts in a variety of styles
For Coined Contacts, consult Data Sheet 12032

Ordering information

Pin Count
Row-to-Row Spacing (Dim. “Y”)

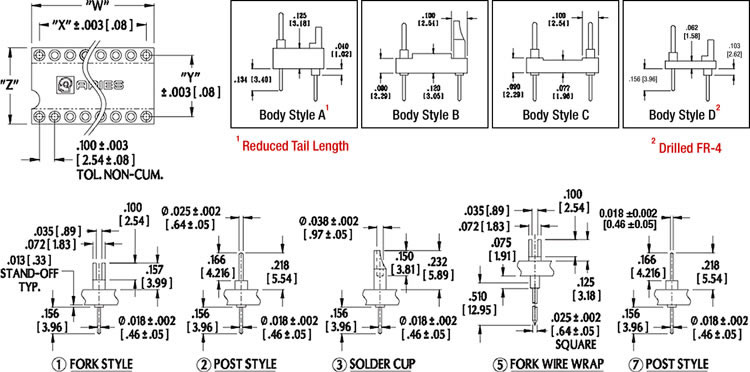

Pin Style (See Drawing)
Plating	Clear

Consult Data Sheet 12032 for Coined Contacts.

BODY MATERIAL: black UL 94V-0 glass-filled 4/6 Nylon
FORK AND POST CONTACTS: Brass 360 1/2-hard per UNS C36000 ASTM B16/B16M-05
SOLDER CUP CONTACTS: Phosphor Bronze per 544 UNS C54400 ASTM B139-01
CONTACT PLATING: either 10µ [0.25µ] min. Au per MIL-G-45204 or 200µ [5.08µ] min. 93/7 Sn/Pb per ASTM B545 or 200µ [5.08µ] min. Sn per ASTM B545 Type 1 over 100µ [2.54µ] min. Ni per SAE AMS-QQ-N-290B
CONTACT CURRENT RATING: 2 amps (3 amps for Pin Style 5)
OPERATING TEMPERATURE: -67°F to 221°F [-55°C to 105°C] Sn & Sn/Pb plating; -67°F to 257°F [-55°C to 125°C] Au plating
FORK CONTACT ACCEPTS: Leads up to 0.035 [0.89] dia.

Download Data Sheet 12035
