Ordering information

Pin Count

Row-to-Row Spacing

Seating Plane Height

Plating

Rails Option

Clear

STANDARD SOCKET BODY: black UL 94V-0 glass-filled 4/6 Nylon
BIFURCATED CONTACTS: Grade A spring-tempered Phosphor Bronze per QQ-B-750
CONTACT PLATING: “-10” 50-130µ [1.27-3.30µ] matte Sn per ASTM B545-97(2004)e1 over 50µ [1.27µ] Ni per SAE AMS-QQ-N-290B; “-10TL” 50-130µ [1.27-3.30µ] 90/10 Sn/Pb per MIL-T-10727 Type 1 over 50µ [1.27µ] Ni per SAE AMS-QQ-N-290B; “-11” 10µ [0.25µ] min. Au per MIL-G-45204 over 50µ [1.27µ] Ni per SAE AMS-QQ-N-290B. Consult Factory for availability.
CONTACT CURRENT RATING: 1 amp
INSERTION FORCE: 110g/pin average
WITHDRAWAL FORCE: 75g/pin average
OPERATING TEMPERATURE: -67°F to 221°F [-55°C to 105°C] Sn and Sn/Pb plating; -67°F to 257°F [-55°C to 125°C] Au plating
ACCEPTS: flat leads up to 0.014 thick x 0.020 wide [0.36-0.51], Round Leads up to 0.020 [0.51] dia.
SOCKET ACCEPTS: lead lengths from seating plane 0.075-0.160 [1.91-4.06]

SUGGESTED PCB HOLE SIZE: 0.035 ±0.002 [0.89 ±0.05] dia.

ALL DIMENSIONS IN INCHES [MILLIMETERS]

CONSULT FACTORY FOR OTHER SIZES & CONFIGURATIONS

ALL TOLERANCES ±0.005 [±0.13] UNLESS OTHERWISE SPECIFIED

“A” (# PINS PER ROW x 0.100 [2.54]) +0.050 [1.27]
“B” (# PINS PER ROW -1) x 0.100 [2.54]

PRINTOUTS OF THIS DOCUMENT MAY BE OUT-OF-DATE AND SHOULD BE CONSIDERED UNCONTROLLED

CUSTOMIZATION: In addition to the standard products shown on this page, Aries specializes in custom design and production. Special materials, platings, sizes, and configurations can be furnished, depending on quantity. NOTE: Aries reserves the right to change product specifications without notice.

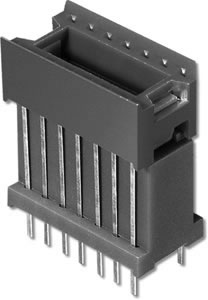

Elevated Display DIP Socket with Bifurcated Contacts – Series 8XXX

FEATURES
