FEATURES

Ideal for elevating devices (displays, switches, etc.) to desired level with 0.240 to 1.250 [6.10 to 31.75] height extension

Ordering information

Pin Count

Seating Plane Height

Row-to-Row Spacing

Optional Solder Pin Tail Plating

Clear

STANDARD SOCKET BODY: Spacer black UL 94V-0 glass-filled 4/6 Nylon
PIN BODY: Brass 360 1/2-hard per UNS C36000 ASTM B16/B16M-05
PIN BODY PLATING: either 10µ [0.25µ] min. Au per MIL-G-45204 or 200µ [5.08] min. 93/7 Sn/Pb per ASTM B545 or 200µ [5.08µ] min. Sn per ASTM B545 Type 1 over 100µ [2.54µ] min. Ni per SAE AMS-QQ-N-290B
4-FINGER COLLET CONTACT: BeCu per UNS C17200 ASTM B194-08
CONTACT PLATING: 30µ [0.76µ] min. Au per MIL-G-45204 over 50µ [1.27µ] min. Ni per SAE AMS-QQ-N-290B
CONTACT CURRENT RATING: 3 amps
OPERATING TEMPERATURE: -67°F to 221°F [-55°C to 105°C]
INSERTION FORCE: 180g/pin, based on 0.018 [0.46] dia. test lead
WITHDRAWAL FORCE: 90g/pin, based on 0.018 [0.46] dia. test lead
NORMAL FORCE: 140g/pin, based on 0.018 [0.46] dia. test lead
ACCEPTS LEADS: 0.015-0.025 [0.38-0.64] dia., 0.110-0.150 [2.79-3.81] long

SUGGESTED PCB HOLE SIZE: 0.035 ±0.002 [0.89 ±0.05] dia.

ALL DIMENSIONS IN INCHES [MILLIMETERS]

CONSULT FACTORY FOR OTHER SIZES & CONFIGURATIONS

ALL TOLERANCES ±0.005 [±0.13] UNLESS OTHERWISE SPECIFIED

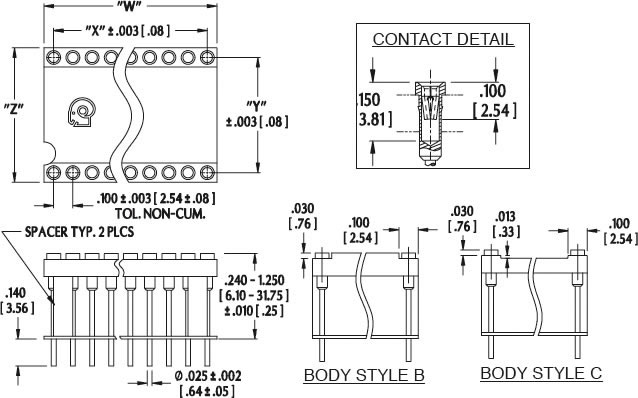

“W” # PINS PER ROW x 0.100 [2.54]
“X” (# PINS PER ROW -1) x 0.100 [2.54]

PRINTOUTS OF THIS DOCUMENT MAY BE OUT-OF-DATE AND SHOULD BE CONSIDERED UNCONTROLLED

CUSTOMIZATION: In addition to the standard products shown on this page, Aries specializes in custom design and production. Special materials, platings, sizes, and configurations can be furnished, depending on quantity. NOTE: Aries reserves the right to change product specifications without notice.

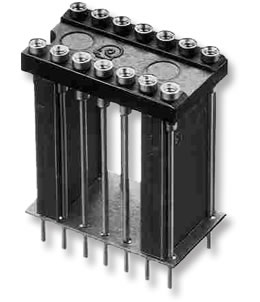

Elevated Display Socket with Collet Contacts on 0.300 [7.62] and 0.600 [15.24] Centers – Series 8XXX
