SOIC and SOJ-to-DIP Adapter – Series 350000

Name: post_title
SKU: _sku
Price: _regular_price
Availability: _stock_status
Rating: none (none reviews)

Available in RoHS

FEATURES

A cost-effective means of upgrading to SOJ or SOIC without changing your PCB layout
Available on 0.300 [7.62] centers
For adapters on 0.400 [10.16], or 0.600 [15.24] centers, consult Data Sheet 18011

Ordering information

Pin Count
Type
Pin Plating
Option	Clear

BOARD MATERIAL: 0.062 [1.58] thick FR-4, UL94V-0, with 1-oz. Cu traces, both sides
PINS: Brass 360 1/2-hard per UNS C36000 ASTM-B16-00
PIN PLATING: Sn/Pb 93/7 per ASTM B 545 over 100µ [2.54µ] Ni per SAE AMS-QQ-N-290B
OPERATING TEMPERATURE: 221°F [105°C]

Download Data Sheet 18010 Download Data Sheet 18010-RC

Can’t Find What You're Looking For?

We can provide you a quote for creating a custom product that fits all of your needs. Let us know exactly what you are looking for and we can make it!

Request a Quote

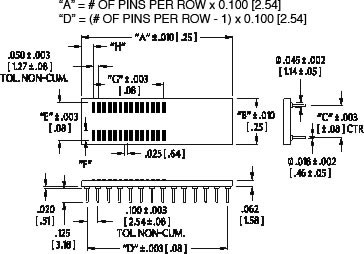

P/N	Pins	Type	Dim. “B”	Centers “C”	Dim. “E”	Dim. “F”	Dim. “G”	Dim. “H”
08-350000-1X	8	SOIC	0.460 [11.68]	0.300 [7.62]	0.455 [11.56]	0.155 [3.94]	0.150 [3.81]	0.121 [3.07]
14-350003-1X	14	SOIC	0.380 [9.65]	0.300 [7.62]	0.322 [8.18]	0.080 [2.03]	0.300 [7.62]	0.200 [5.08]
14-350000-1X	14	SOIC	0.450 [11.43]	0.300 [7.62]	0.420 [10.67]	0.138 [3.51]	0.500 [12.70]	0.180 [4.57]
16-350000-1X	16	SOIC	0.450 [11.43]	0.300 [7.62]	0.420 [10.67]	0.138 [3.51]	0.550 [13.97]	0.180 [4.57]
18-350000-1X	18	SOIC	0.450 [11.43]	0.300 [7.62]	0.420 [10.67]	0.138 [3.51]	0.550 [13.97]	0.180 [4.57]
20-350000-1X	20	SOIC	0.450 [11.43]	0.300 [7.62]	0.420 [10.67]	0.138 [3.51]	0.550 [13.97]	0.180 [4.57]
24-350000-1X	24	SOIC	0.450 [11.43]	0.300 [7.62]	0.420 [10.67]	0.138 [3.51]	0.550 [13.97]	0.180 [4.57]
20-350001-1X	20	SOJ	0.420 [10.67]	0.300 [7.62]	0.350 [8.89]	0.090 [2.29]	0.550 [13.97]	0.060 [1.52]
28-350002-1X	28	SOIC	0.400 [10.16]	0.300 [7.62]	0.350 [8.89]	0.090 [2.29]	0.650 [16.51]	0.375 [9.53]
