SSOP-to-DIP Adapter – Series 651000

FEATURES

  • Allows the use of 0.65mm pitch surface-mount ICs in thru-hole designs
  • Ideal for prototyping and testing/evaluating SSOP ICs
  • Adapter can be cut to smaller sizes by end user
  • For Panelized Form or for mounting of consigned ICs. Consult Factory

Ordering information

Clear
  • ADAPTER BODY: FR-4, 0.062 [1.58] thick, with 1-oz. Cu traces
  • PINS: Brass 360 1/2-hard per UNS C36000, ASTM B16/B16M
  • PIN PLATING: 200µ [5.08µ] Sn/Pb 93/7 per ASTM B579-73 over 100µ [2.54µ] Ni per SAE AMS-QQ-N-290B
  • CURRENT RATING: 1 amp
  • OPERATING TEMPERATURE: 221°F [105°C]
  • SUGGESTED PCB HOLE SIZE: 0.028 ±0.003 [0.71 ±0.08] dia.
  • Will plug into standard IC socket

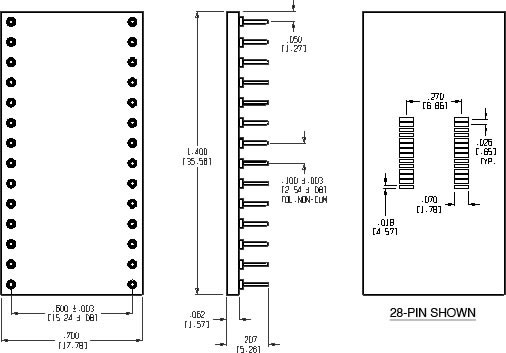

ALL DIMENSIONS IN INCHES [MILLIMETERS]

ALL TOLERANCES ±0.005 [±0.13] UNLESS OTHERWISE SPECIFIED

PRINTOUTS OF THIS DOCUMENT MAY BE OUT-OF-DATE AND SHOULD BE CONSIDERED UNCONTROLLED

CUSTOMIZATION: In addition to the standard products shown on this page, Aries specializes in custom design and production. Special materials, platings, sizes, and configurations can be furnished, depending on quantity. NOTE: Aries reserves the right to change product specifications without notice.
