Test Socket Breakout Board

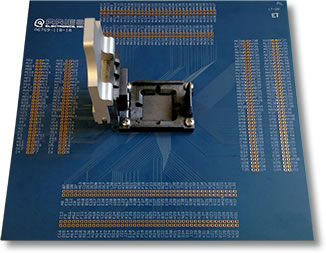

Custom IC socket breakout board

FEATURES

  • Fan-out from an Aries Socket/DUT on a small pitch array 0.40mm pitch or smaller to a larger pitch/array for prototyping or programming
  • Allows DUT to connect to breadboard or ZIF socket for prototyping/programming
  • Adapt to existing test benches and tooling
  • Can be manufactured for RoHS compliance

Ordering Information

Easy-to-use Worksheet and Upload Form
To obtain a quote for a specific breakout board, please email a request to info@arieselec.com with the following information:

  • Your name, company name, and telephone number
  • A drawing or data sheet of the device to be placed on breakout board (top image)
  • A drawing or data sheet of the target footprint for the breakout board (bottom image)
  • A list of any other design parameters or restrictions that must be considered
  • The quantity of breakout board to be quoted
  • BOARD MATERIAL: 0.062 [1.58] thick FR-4 or Rogers 370 HR, with 1/2-oz. Cu traces, both sides
  • PADS: finished with ENIG (Electroless Ni Immersion Au)
  • TRACE WIDTH/SPACE: 0.003 [0.076]
  • OPERATING TEMPERATURE: 221°F [105°C] FR-4, 266°F [130°C] Pb-free
Download Data Sheet 18108
