CSP/µBGA Test & Burn-in Socket w/Adjustable Pressure Pad for Devices up to 27mm Square

CSP Micro BGA Test Burn in Socket

FEATURES

  • Aries unique universal socketing system allows the socket to be easily configured for any package, on any pitch (or multiple pitch) from 0.2mm or greater, in any configuration, with little or no tooling charge or extra lead-time.
  • For Test & Burn-In of CSP, µBGA, Bump-Array, QFN, QFP, MLF, DFN, SSOP, TSSOP, TSOP, SOP, SOIC, LGA, LCC, PLCC, TO and any SMT package style made. Also can be compatible with PGA packaged devices.
  • Quick and Easy Probe Replacement System: the complete set of probes can be removed and a new set (interposer) can be inserted quickly and easily. The old set can be returned to the factory for repair and sent back within one day.
  • Pressure mounting, no soldering required.
  • 4-point crown (other styles also available) insures scrub on solder oxides.
  • Signal path during test only 0.077 [1.96].
  • Accommodates any package up to 27mm square.
  • Small overall socket size/profile allows max. number of sockets per BIB and BIB’s per oven, while being operator friendly.
  • Adjustable pressure pad, with a large tolerance, allows for varying device heights as well as for fine-tuning pressure pad force to meet specific device requirements.

Ordering Information

Easy-to-use Worksheet and Upload Form

Need a Breakout Board?

SPECIAL THERMAL REQUIREMENT WORKSHEET

  • MOLDED SOCKET COMPONENTS: UL 94V-0 PEEK and/or Ultem
  • 1dB BANDWIDTH: 1GHz (0.80mm pitch) (large probe)
  • ESTIMATED CONTACT LIFE: 500,000 cycles
  • COMPRESSION SPRING-PROBES: heat-treated BeCu with 30µ min. [0.75µ] Au per MIL-G-45204 over 30µ min. [0.75µ] Ni per SAE AMS-QQ-N-290B
  • CONTACT FORCE…
    : 6g per contact on 0.20-0.29mm pitch
    : 15g per contact on 0.30-0.35mm pitch
    : 16g per contact on 0.40-0.45mm pitch
    : 25g per contact on 0.50-0.75mm pitch
    : 25g per contact on 0.80mm pitch or larger
  • OPERATING TEMPERATURE:-55°C [-67°F] min. to 150°C [302°F] max.
  • ALL HARDWARE: Stainless Steel
  • TYPICAL BURN-IN TEMPERATURE: 150°C [302°F] max.
  • SOCKET: mounted with four #4-40 screws to either a plastic shipping plate (to be removed at time of socket mounting or PCB) or a tapped insulated backing plate to be used on underside of PCB for high pin count applications
  • NOTE: Sockets must be handled with care when mounting or removing sockets to/from PCB
  • TEST PCB MINIMUM DIAMETER “G”…
    : 0.025 [0.64] (large probe 0.80mm pitch and larger)
    : 0.015 [0.38] (small probe 0.50-0.79mm pitch)
    : 0.012 [0.31] (small probe 0.40-0.49mm pitch)
    : 0.009 [0.23] (small probe 0.30-0.39mm pitch)
    : 0.004 [0.10] (small probe 0.20-0.29mm pitch)
  • TEST PCB DIA. SPRING-PROBE PAD PLATING: 30µ min. [0.75µ] Au per MIL-G-45204 over 30µ [0.75µ] min. Ni per SEA AMS-QQ-N-290. Pad must be the same height as top surface of PCB. Please refer to the Custom Socket Drawing supplied by Aries after receipt of your order for your specific application.

ALL DIMENSIONS: INCHES [MILLIMETERS]

ALL TOLERANCES: ±0.005 [0.13] UNLESS OTHERWISE SPECIFIED

PRINTOUTS OF THIS DOCUMENT MAY BE OUT-OF-DATE AND SHOULD BE CONSIDERED UNCONTROLLED

CUSTOMIZATION: In addition to the standard products shown on this page, Aries specializes in custom design and production. Special materials, platings, sizes, and configurations can be furnished, depending on quantity. NOTE: Aries reserves the right to change product specifications without notice.

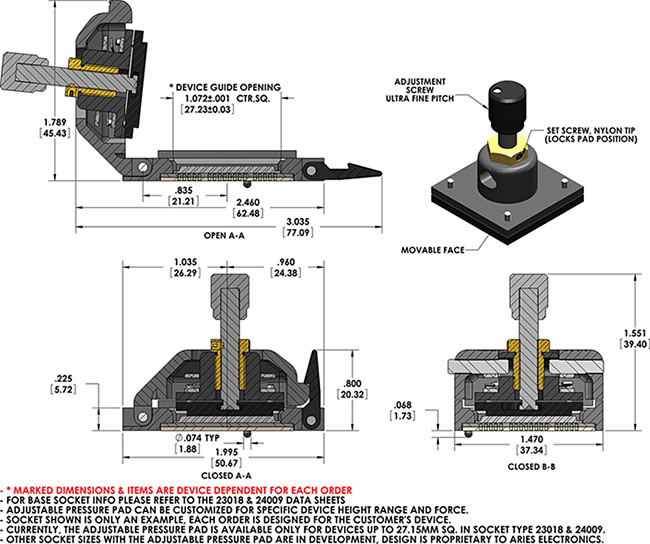

app-adjustable-csp-micro-bga-test-burn-in-socket-dwg
spring-probes

Download Data Sheet 23018-APP
